tCam Viewer 2

An Android app for viewing and managing imagery from a tCam thermal imaging camera over Wi-Fi.

Overview

tCam Viewer 2 connects to a tCam device over a TCP socket, decodes its raw radiometric data, applies colour palettes, and renders a live thermal video feed. Captured frames can be saved, browsed, shared, and exported directly from the device.

Requirements

Android 8.0 (API 26) or later
A tCam camera on the same Wi-Fi network (or acting as its own access point)

Features

Camera screen

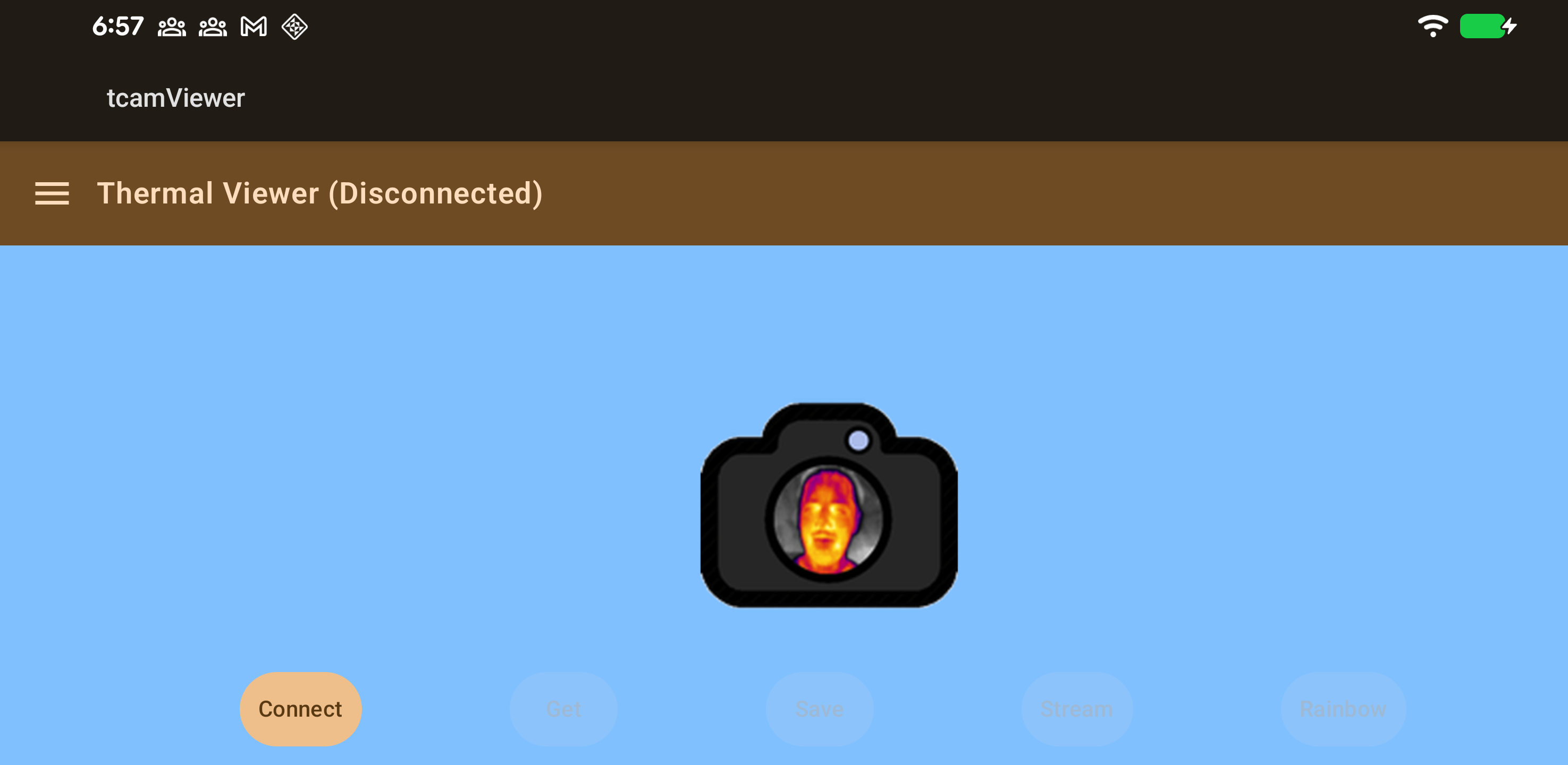

Disconnected	Live

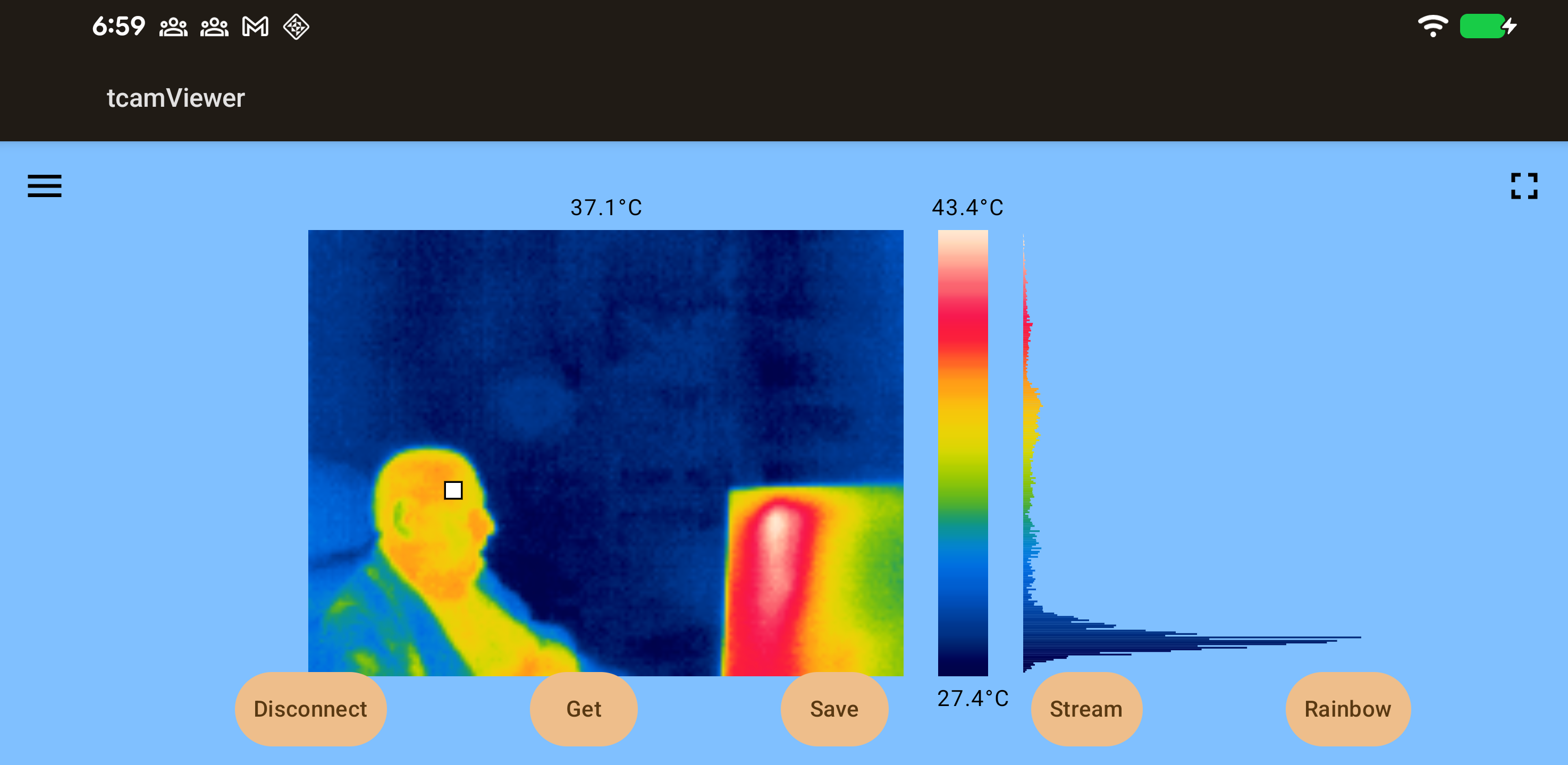

The live view above shows a thermal image using the Rainbow palette. The spotmeter temperature is overlaid at the measurement point, with a live histogram beside the colour bar. When disconnected and no frame has been captured yet, the app icon is shown in place of the image.

Live 160 × 120 radiometric thermal video streamed over TCP port 5001
Spotmeter, max, and min temperature overlays (Celsius or Fahrenheit)
Live colour histogram and colour bar scale, with a position arrow tracking where the spotmeter reading falls between max and min
Frame-rate counter shown while streaming
10 colour palettes selectable from a drop-down: Arctic, Banded, Blackhot, DoubleRainbow, Fusion, Gray, Ironblack, Isotherm, Rainbow, Sepia
Auto-reconnect — if an active connection drops unexpectedly (as opposed to the user disconnecting), the app retries the last-known IP a few times, then falls back to mDNS discovery in case the camera’s DHCP lease handed out a new address
Temperature history chart — a chart icon (top-right, next to fullscreen) opens a rolling chart of spot/max/min temperature over the last 5 minutes; see Temperature history / Charts below
Flat field correction (FFC) — an icon below the fullscreen toggle (pictured below) sends the camera a run_ffc command to manually trigger the Lepton’s flat field correction on demand
Region measurement — an alternative to the point spotmeter showing avg/min/max within a resizable box; see Region measurement below
Get — captures a single frame from the camera
Save — saves the current frame to disk as a .tjsn file
Stream → Start — starts continuous streaming (frames displayed, not saved)
Stream → Record — starts streaming and simultaneously records every frame to a .mtjsn file
Stream → Time Lapse — opens a dialog to select capture interval (1 second – 5 minutes) and total duration (30 seconds – 2 hours); sends a get_image command at each interval and saves the frames to a .tltjsn file. The button shows Rec while each frame is being captured and Stream while waiting for the next interval. Each captured frame also feeds the Temperature History chart, same as streaming. When the duration expires naturally, the chart is auto-saved as a .tchart file (no prompt) alongside the completion notification; manually stopping or discarding a time lapse does not trigger this.
Stop — stops streaming, recording, or an in-progress time lapse

Region measurement

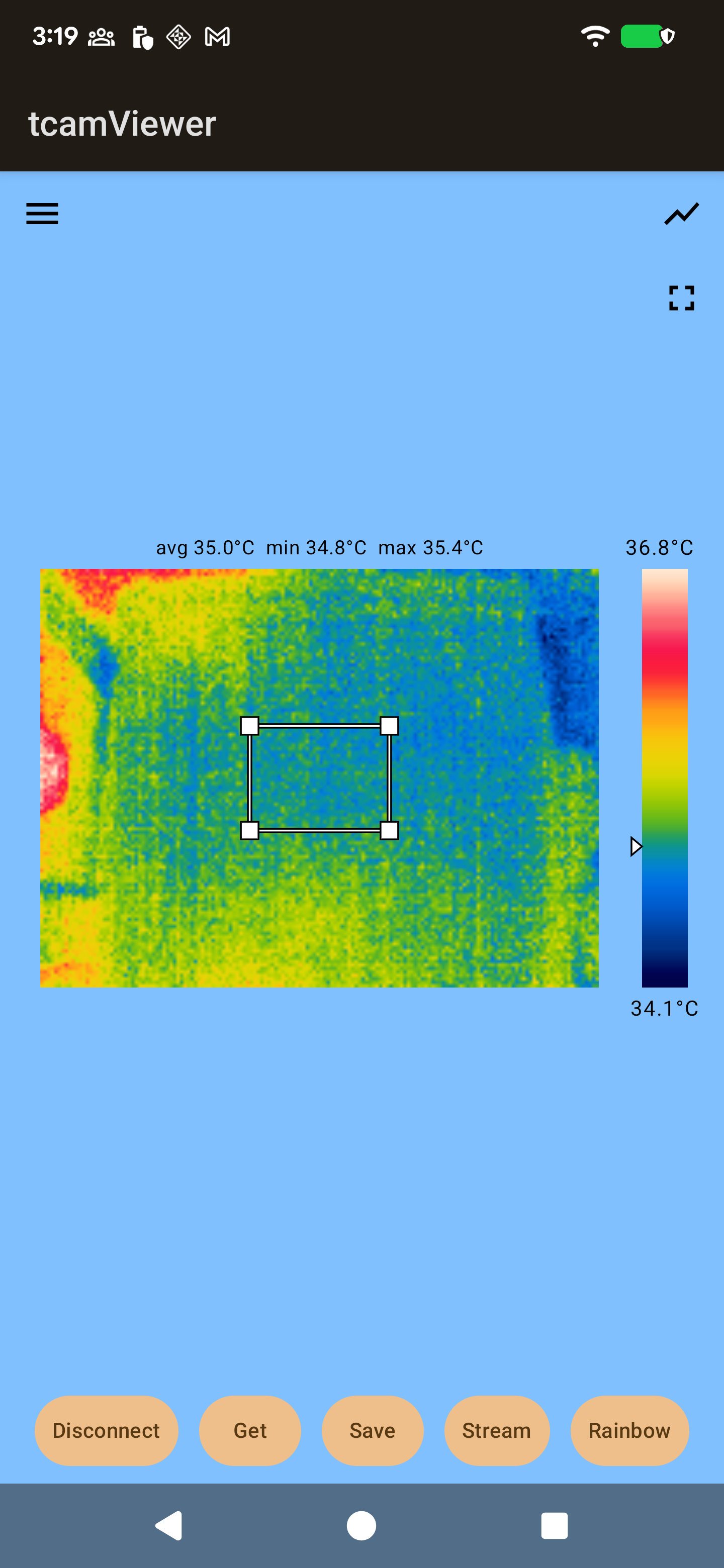

An alternative to the point spotmeter: a resizable box with corner handles replaces the single hollow-square marker, and the header readout shows the average, minimum, and maximum temperature within it instead of a single spot value. Drag the box’s body to move it, or drag a corner handle to resize.

Enabled via the Region Measurement toggle in Settings (see below) — mutually exclusive with the point spotmeter, so only one is ever shown/interactive at a time
Avg/min/max are computed entirely on-device from the raw per-frame radiometric data; no extra command is sent to the camera
The on/off preference persists across sessions; the box’s own position is session-only and re-centers on each connect

Library screen

Library	Filter by date

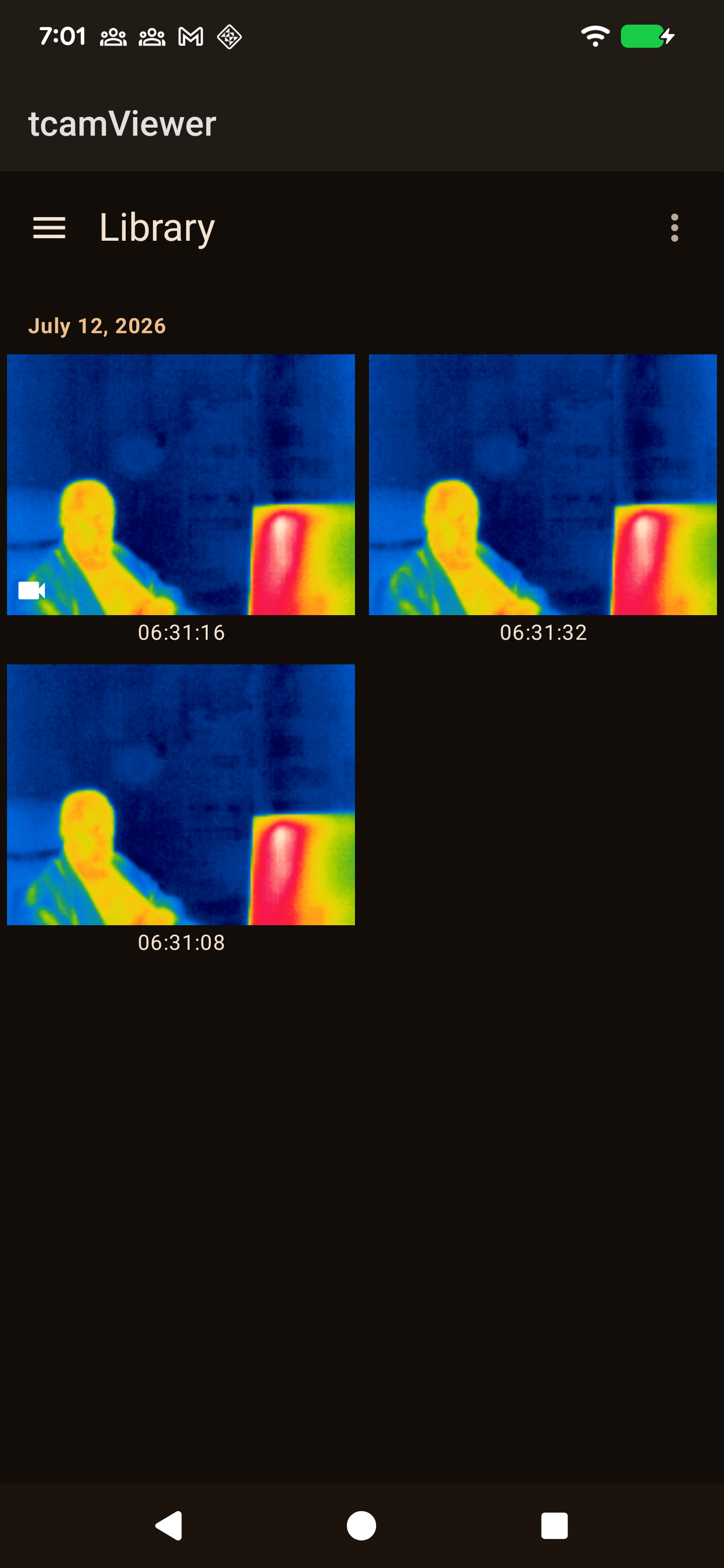

The library groups saved files by date. Video recordings show a white camera badge and time lapse files show a yellow timer badge (top-left of thumbnail). Tap a thumbnail to select it; the eye icon opens the browse window.

Browses all saved .tjsn (image), .mtjsn (video), and .tltjsn (time lapse) files grouped by date
Thumbnail preview loaded lazily per visible row; video recordings show a white camera badge; time lapse files show a yellow timer badge

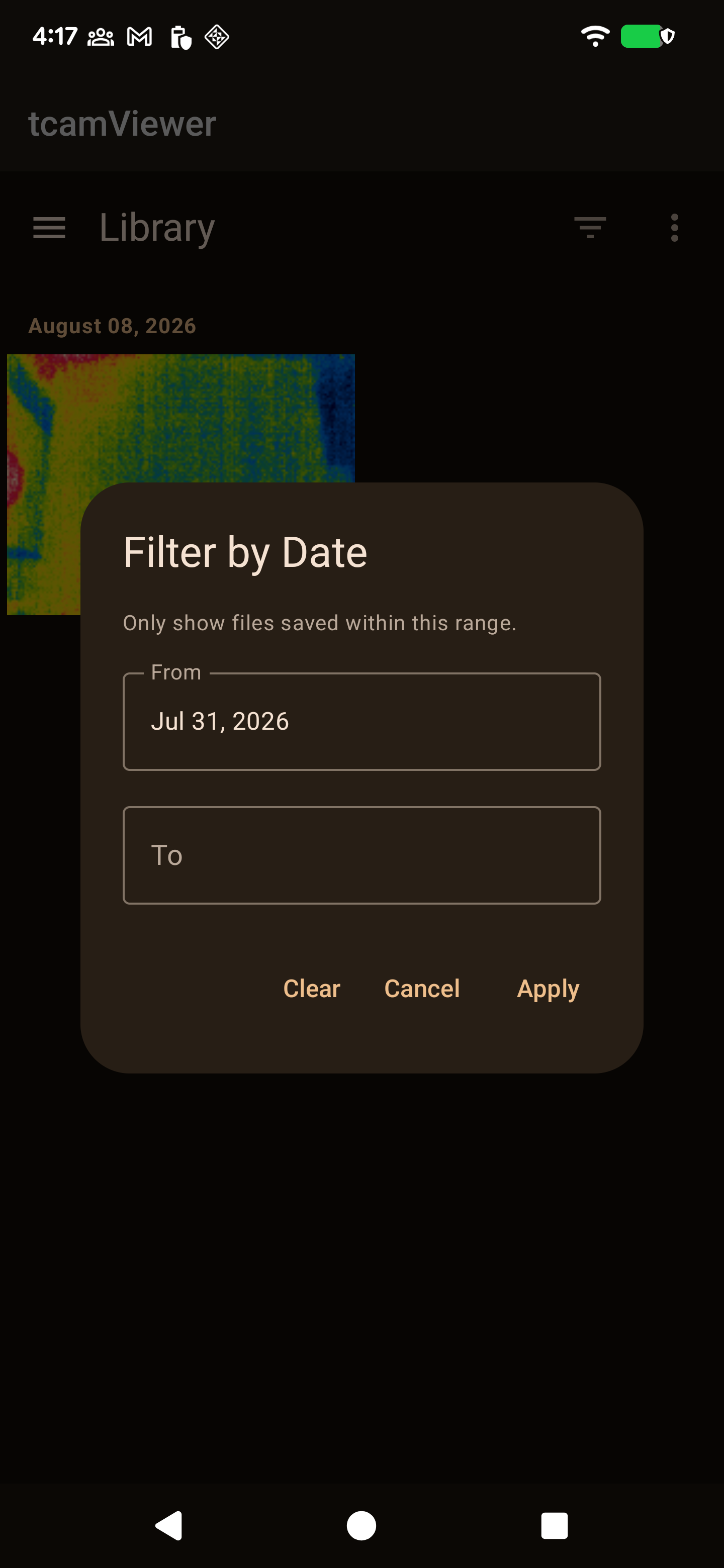

Filter by date — a filter icon in the toolbar (tinted when active) opens a From/To date-range picker; only file groups saved within that range are shown. The filter and overflow icons are disabled when there’s nothing to filter
Multi-select with visual highlight and checkmark badge
Ascending / descending sort and Select All / Clear via overflow menu
Delete selected files from disk
Browse button opens a full-screen image viewer for selected files

Browse / image viewer

Browse window

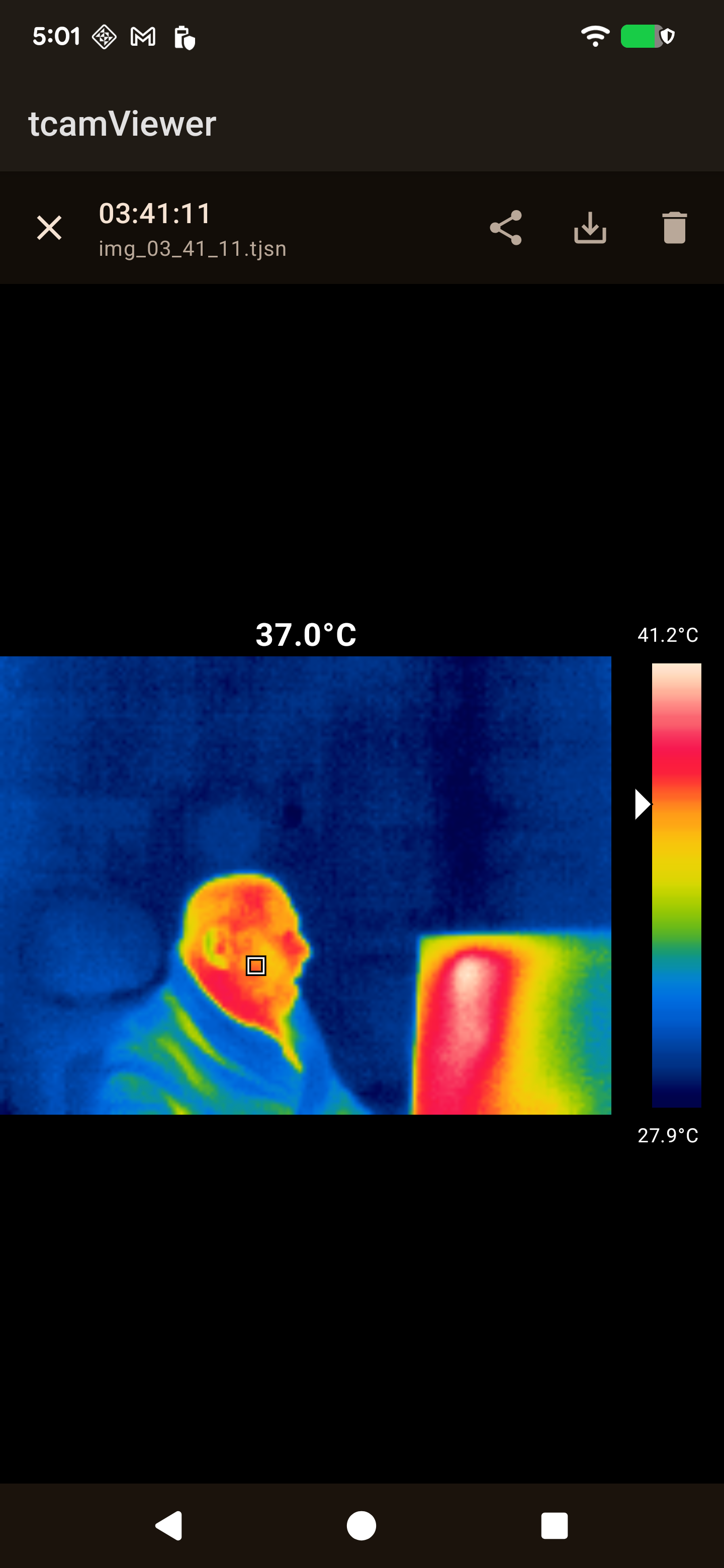

Full thermal image with colour bar, temperature labels, and spotmeter hotspot marker. Tap the play button (▶) on .mtjsn recordings and .tltjsn time lapses to open the video player.

Full-screen thermal image with colour bar sidebar
Max temperature (top of bar), min temperature (bottom of bar), and spotmeter temperature overlaid on the image
A position arrow beside the colour bar shows where the spotmeter reading falls between max and min
Image time and filename shown in the title bar
Previous / next navigation when multiple files are selected
Share / Export – see Exported / shared image below
Delete – removes the file from disk and returns to the library
Play (.mtjsn recordings and .tltjsn time lapses) – opens the video player

Exported / shared image

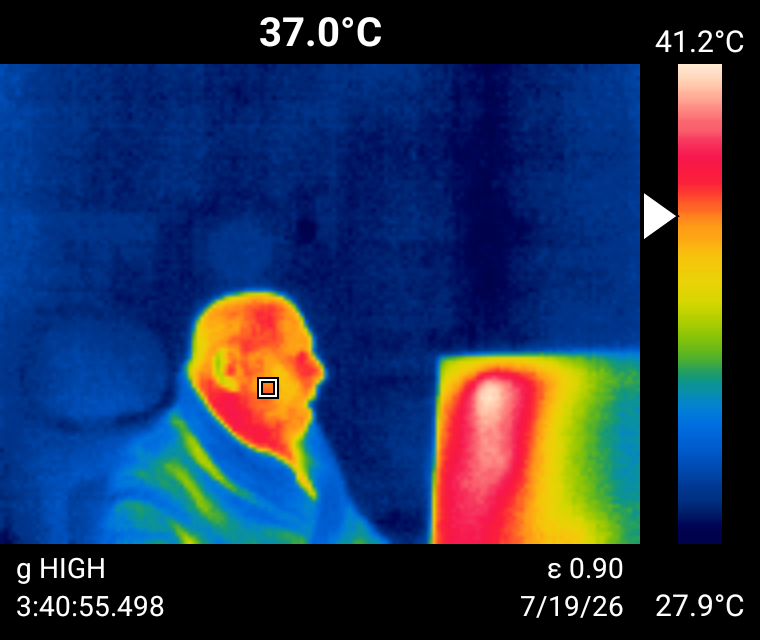

Exported image

Share composites the full image (scaled 4×) and fires the system share sheet; Export saves the same composite PNG to the device gallery via MediaStore (no storage permission required on Android 10+). The composite includes:

Spotmeter temperature centred above the image
Colour bar with max/min labels and the same position arrow shown in the browse window
Spotmeter hotspot marker on the image
A footer with gain mode and emissivity on the top row, and capture time and date on the bottom row, left/right-justified to the image width

All spotmeter-derived elements (temperature header, hotspot marker, and position arrow) are omitted when the Spotmeter setting is disabled.

Temperature history / Charts

Temperature history dialog

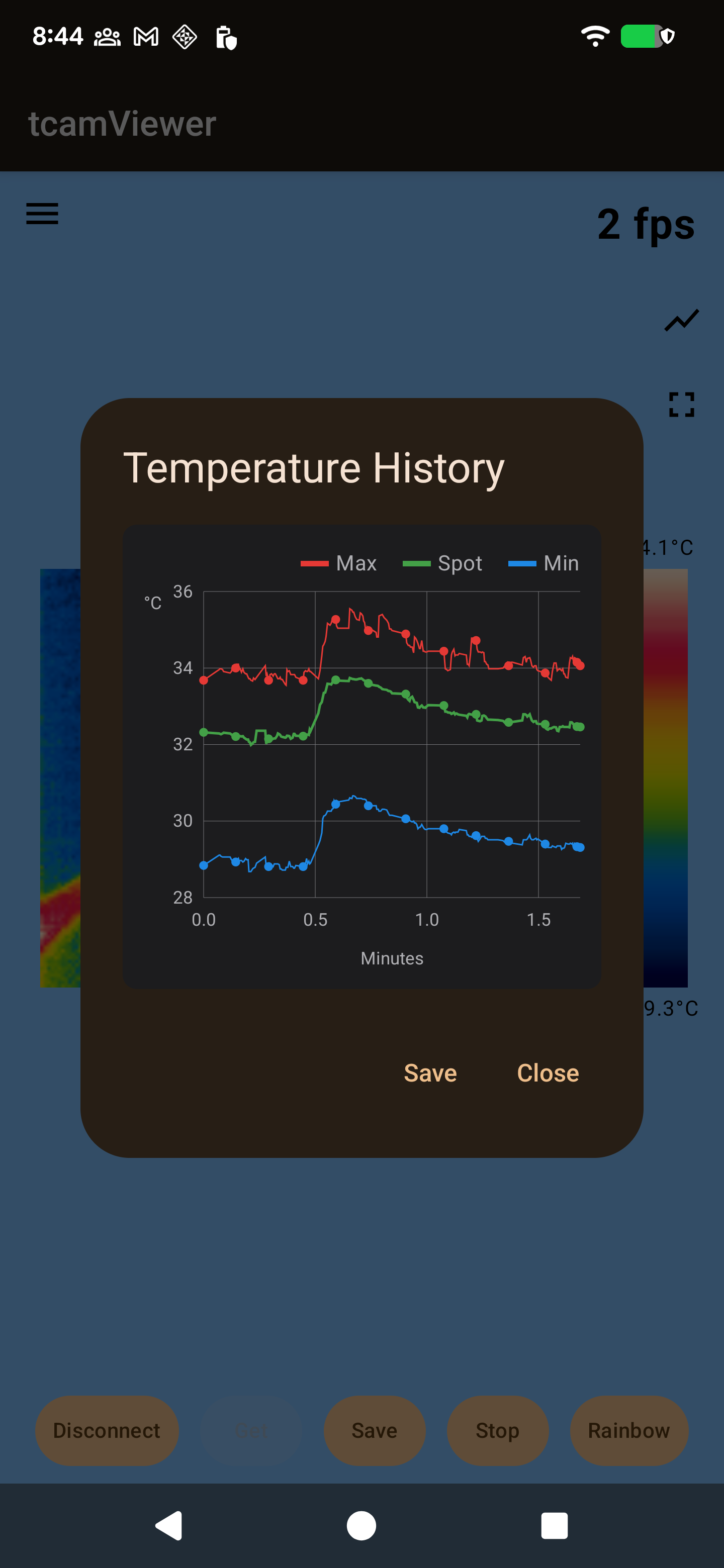

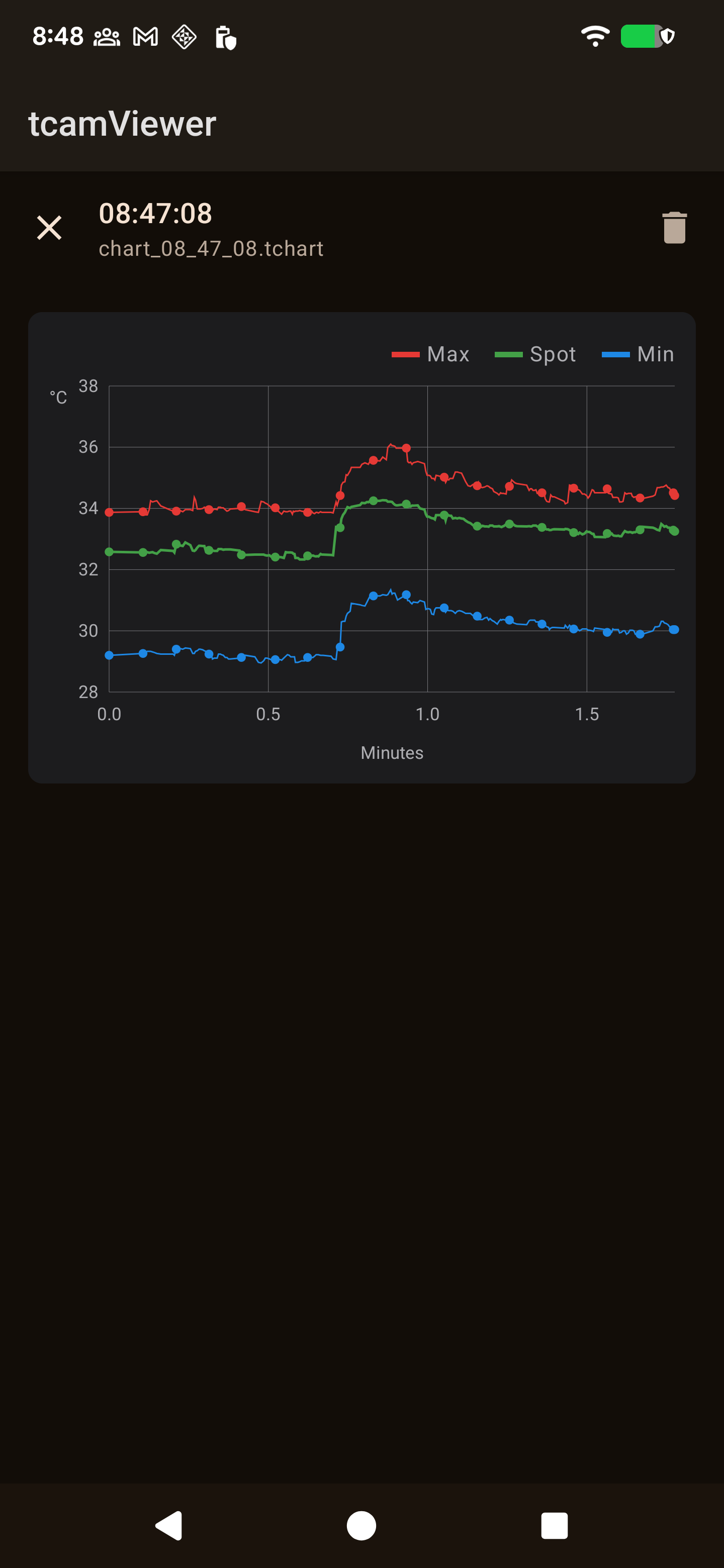

The Camera screen’s chart icon opens a Temperature History dialog: a rolling line chart of spot (green, bolder), max (red), and min (blue) temperature over the last 5 minutes, with a Save button alongside Close.

Styled after desktop thermal-camera charting tools: dark background, gridlines snapped to round numbers on both axes, a line-swatch legend, and markers along each line at the sampled points (thinned to a minimum on-screen spacing so per-frame sampling doesn’t turn into a smear of overlapping dots)
Chart data is recorded continuously while connected (once per frame with valid radiometric data), independent of streaming/recording
Values are plotted exactly as recorded in whatever unit was active at sample time; only the axis labels reflect the current unit, so switching units mid-session doesn’t retroactively relabel older samples
History resets when the camera is manually disconnected; a brief auto-reconnect drop does not clear it
Tracks whichever measurement mode is active: in Point mode the green line is Spot and max/min are the whole frame’s; in Region mode it becomes Avg and max/min are the region box’s own max/min instead. Toggling between Point and Region also resets the rolling history, since the two modes’ values aren’t comparable on one chart
Save writes the chart to disk as a .tchart file (including which mode it was recorded in), viewable later in the Charts tab

Charts screen

Charts tab	Chart detail

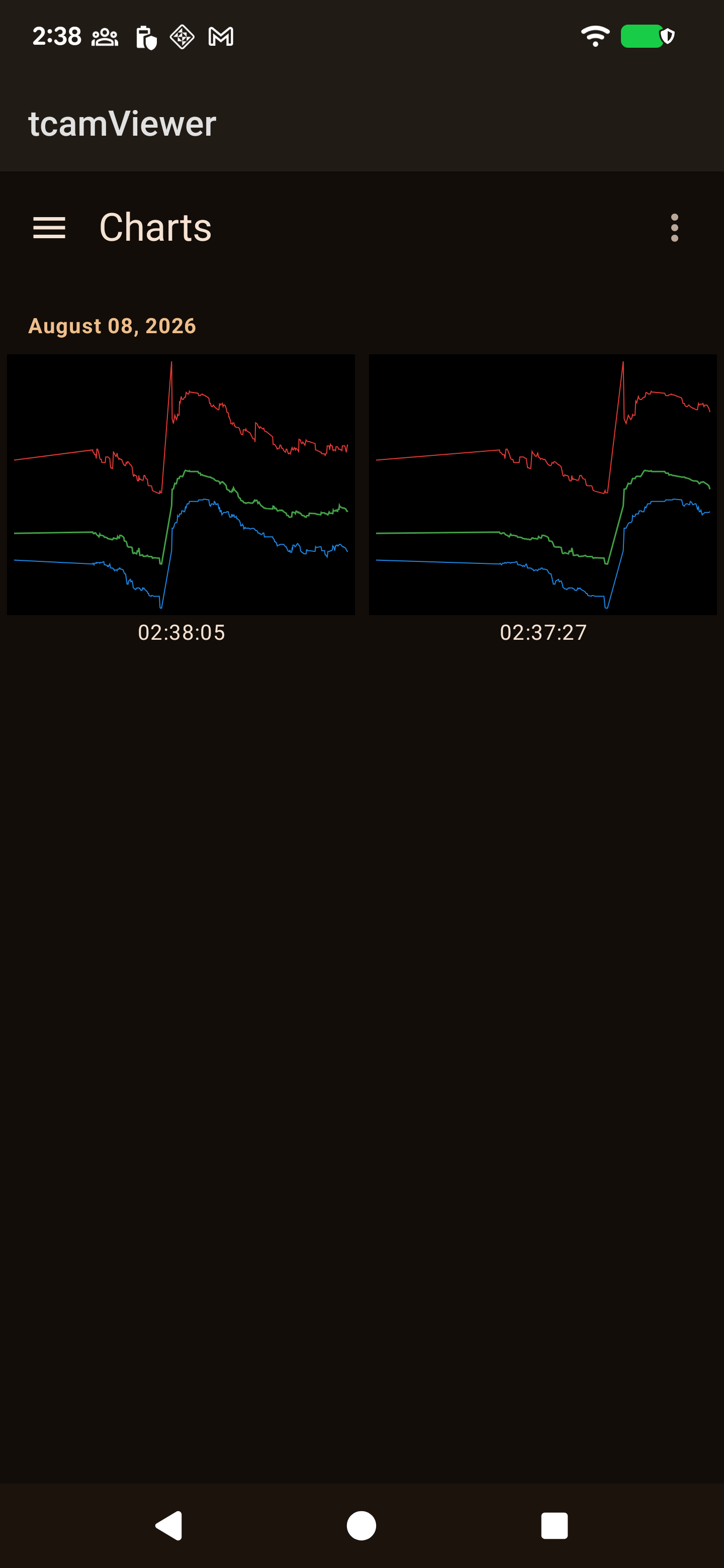

The Charts tab lists saved temperature-history charts, grouped by date, mirroring the Library screen’s UX:

Mini line-chart thumbnails (no legend/axis labels — full detail is one tap away) grouped by date
Multi-select with visual highlight and checkmark badge
Ascending / descending sort and Select All / Clear via overflow menu
Delete selected charts from disk
View button opens a full-screen chart (same renderer as the live Temperature History dialog) with Previous / Next navigation across selected charts and per-chart delete

Video player

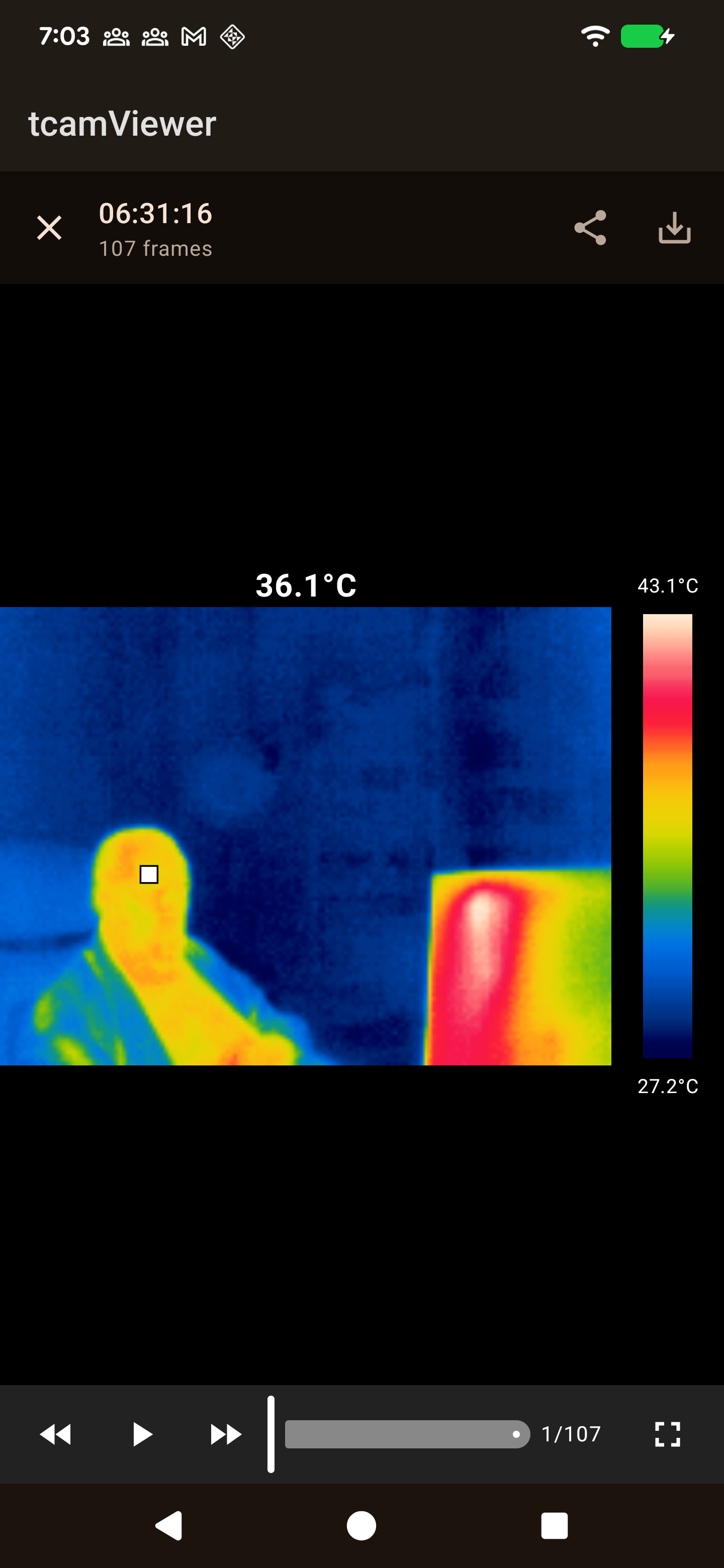

Plays back .mtjsn recordings with accurate per-frame timing derived from metadata timestamps
Plays back .tltjsn time lapses at a smooth 8 fps (125 ms/frame), ignoring the original capture interval
Skip back / forward 5 frames with fast-rewind / fast-forward buttons
Scrub slider with frame counter
Fullscreen mode – hides the title bar and system bars; tap the video or the fullscreen button to toggle; Back exits fullscreen before closing the player
Share / Export – encodes the frames to MP4 (at the configured export resolution, with the spotmeter hotspot marker burned into each frame) and fires the share sheet or saves to the device gallery via MediaStore

Settings screen

Connected — top	Connected — bottom

Region Measurement toggle	Temperature Alert

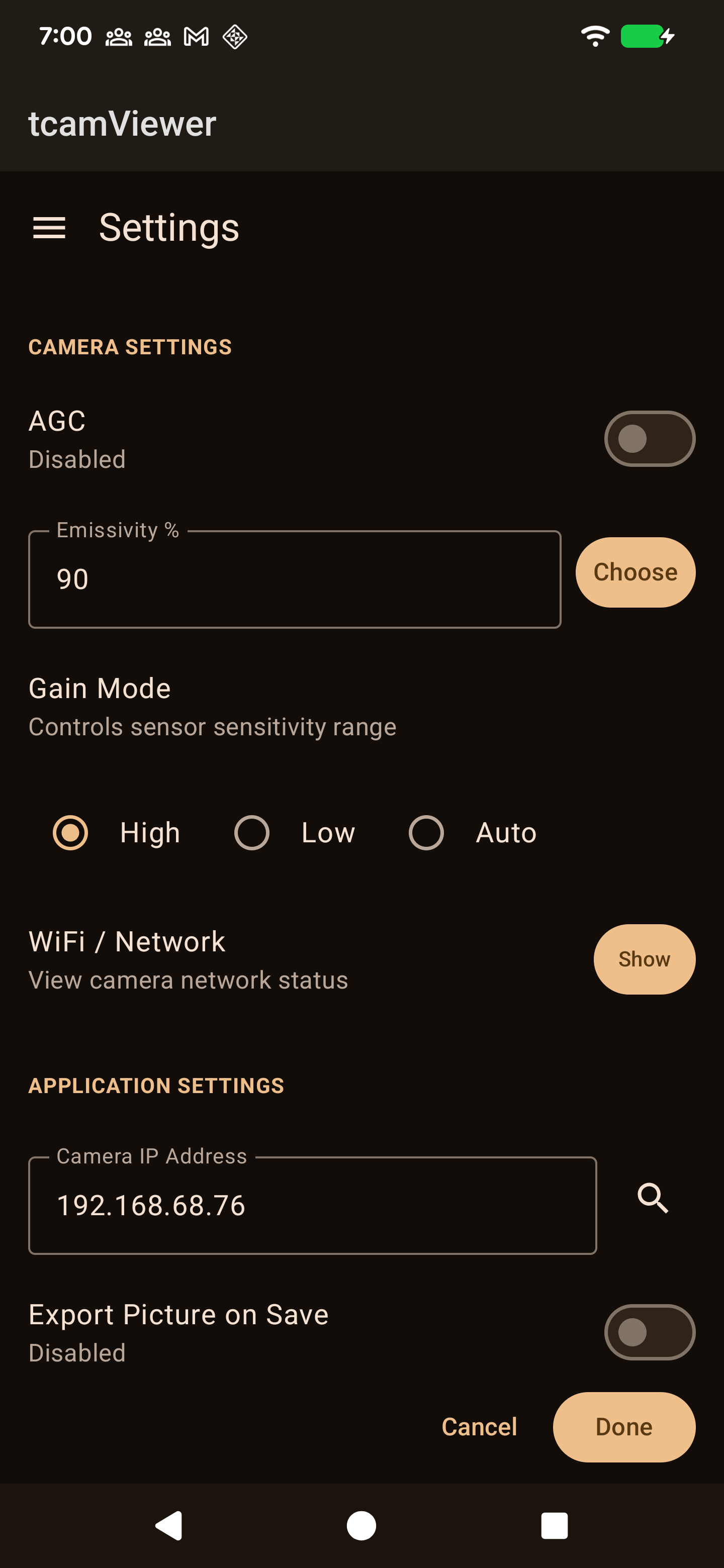

When connected, a Camera Settings section appears at the top with AGC, emissivity, gain mode, and WiFi/network controls that are sent directly to the camera. The Application Settings section below is always visible.

Camera IP address — changing it while connected and pressing Save first shows a confirmation dialog (this will disconnect the camera); confirming disconnects only, and the new address is persisted on the next Save press

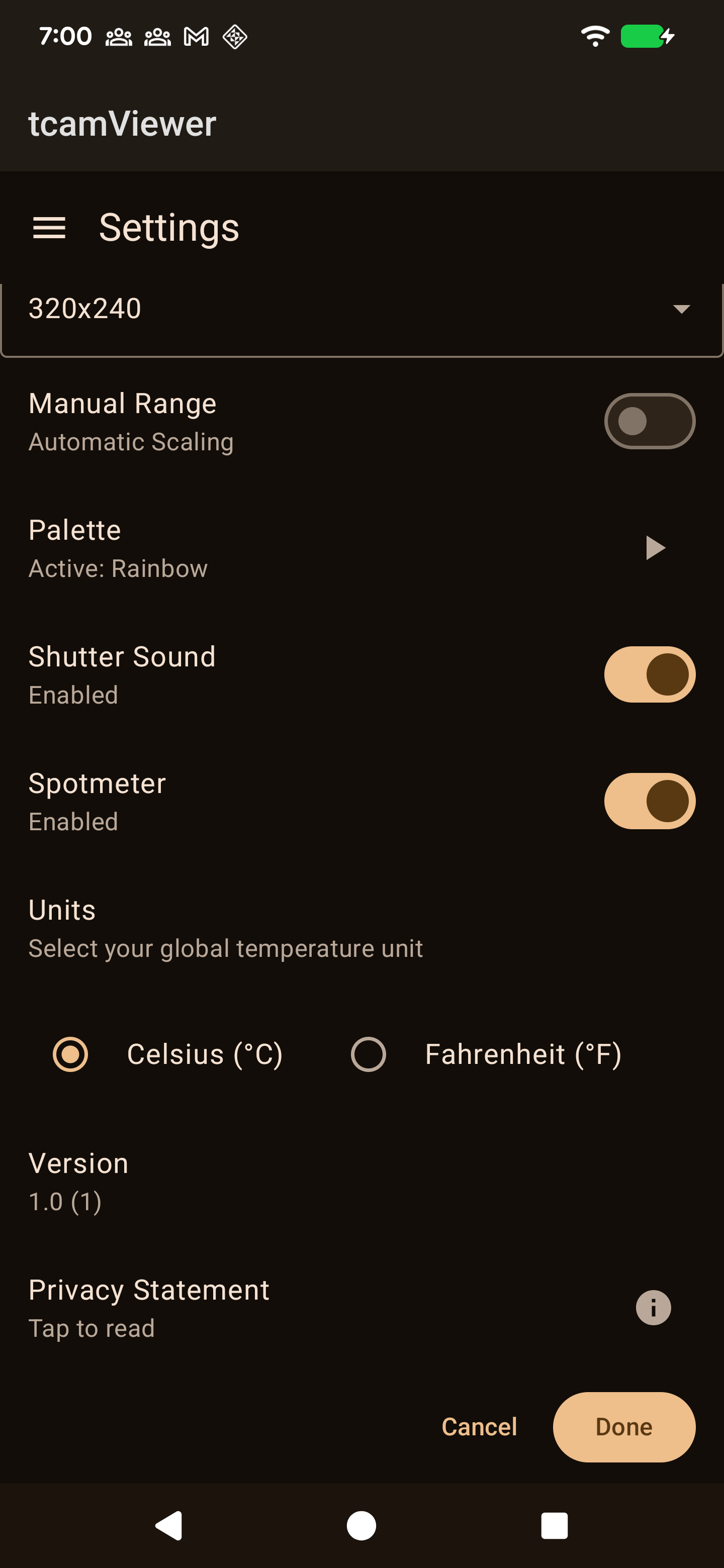

Colour palette selection
Temperature units (Celsius / Fahrenheit)
AGC (Automatic Gain Control) toggle
Manual temperature range (min / max)
Shutter sound toggle
Spotmeter enable / disable

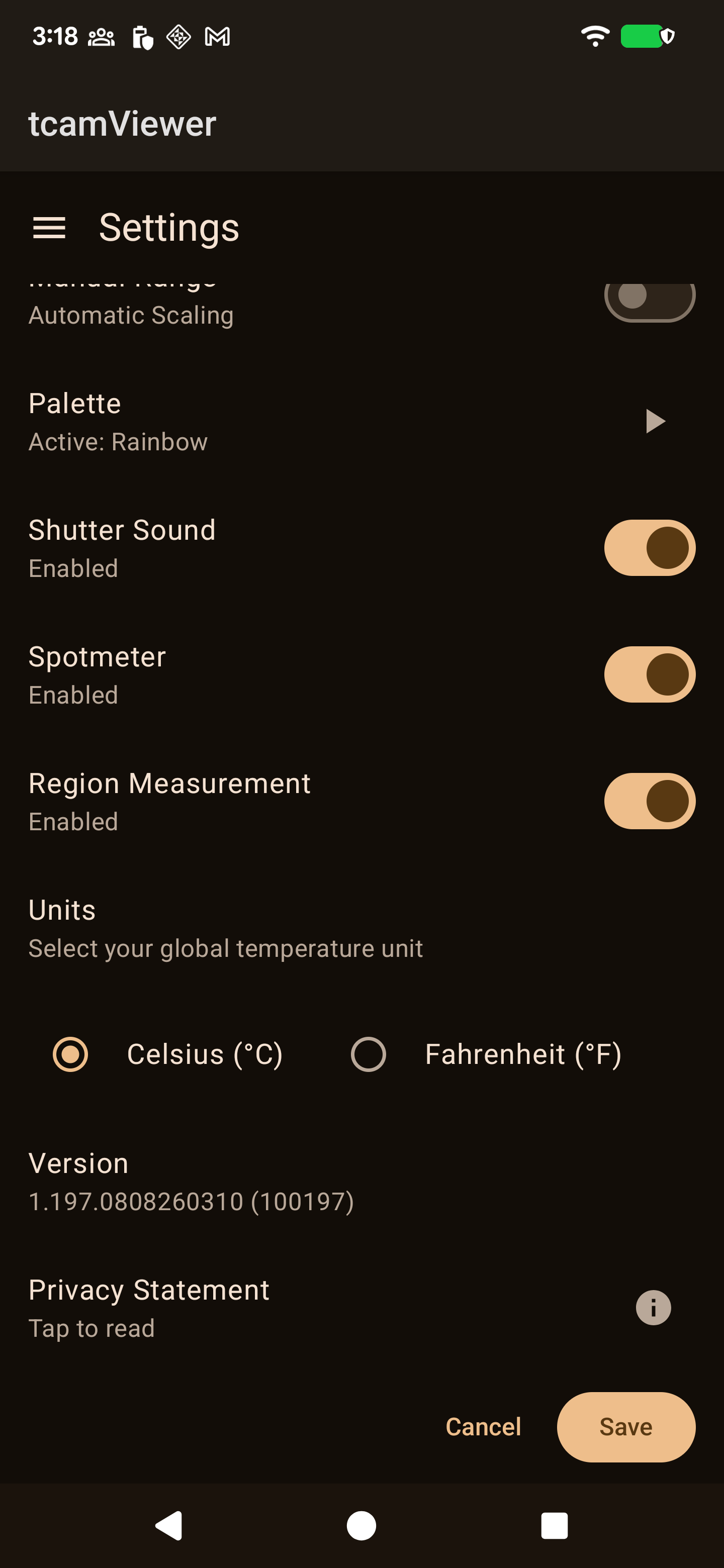

Region Measurement enable / disable — switches the Camera screen between the point spotmeter and the resizable region measurement box; mutually exclusive with Spotmeter and persists across sessions

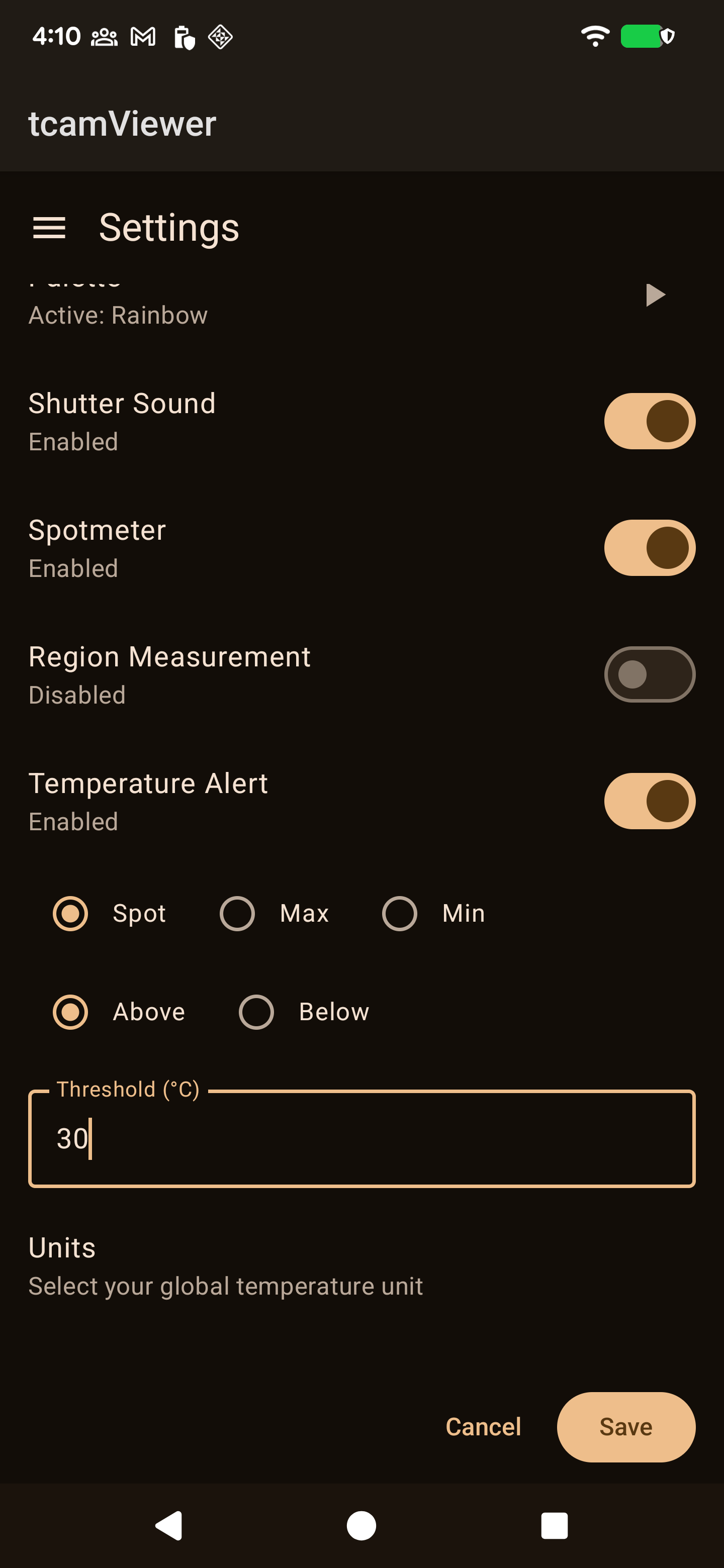

Temperature Alert — fires an in-app message (Snackbar on the Camera screen) the moment a chosen metric (Spot/Max/Min) crosses a threshold in the current unit, in a chosen direction (Above/Below); edge-triggered, so it fires once per crossing rather than every frame. The Spot metric only alerts while the point hotspot marker is actually visible on screen — it stays silent if Spotmeter is disabled or Region Measurement mode is active, since no marker is drawn in either case
Export resolution for shared/exported video (.mtjsn / .tltjsn playback → MP4)
All settings are deferred until Save is pressed; Cancel discards changes and returns to the previous tab

Architecture

CameraService (TCP socket, Android Service)
    │
    ├─ sendCmd() / pendingRequests     ──► one-shot commands (get_status, set_config, …)
    └─ imageChannel (RxJava Subject)   ──► continuous frame stream
                                               │
                                         CameraViewModel
                                         (StateFlow properties)
                                               │
                                         Compose UI screens

Camera protocol

All messages are JSON framed with STX () prefix and ETX () suffix over TCP port 5001. Each image frame contains:

Field	Content
`radiometric`	Base64-encoded 16-bit little-endian pixel values, 160 × 120
`telemetry`	Base64-encoded 16-bit little-endian words; AGC flag, spotmeter location, temperature resolution at fixed offsets
`metadata`	Timestamp, date, palette name

Camera devices are discovered via mDNS service type _tcam-socket._tcp.

Image processing pipeline (`CameraUtils.processImageResponse`)

Decode base64 radiometric → raw 16-bit pixel array
Decode base64 telemetry → AGC flag, spotmeter position, tLinear enable/resolution
If AGC: map raw values (0–255) directly through the active palette
If radiometric: normalise 0–255 using min/max (or manual range from settings), then map through palette
Build ARGB bitmap and per-palette histogram

File formats

`.tjsn` — single thermal frame

A single JSON object written verbatim from the camera frame:

{
  "radiometric": "<base64 16-bit LE pixels, 160×120>",
  "telemetry":   "<base64 16-bit LE words>",
  "metadata":    { "date": "M/d/yy", "Time": "H:mm:ss.SSS", "Palette": "Ironblack", ... }
}

Saved to <externalFilesDir>/Pictures/<MM_dd_yyyy>/img_<HH_mm_ss>.tjsn. No storage permission required (app-private external storage).

`.mtjsn` — multi-frame thermal video

A sequence of raw frame JSON objects delimited by ETX bytes (0x03), followed by a footer JSON object:

<frame1_json> 0x03 <frame2_json> 0x03 … <frameN_json> 0x03 <video_info_json>

Each <frameN_json> is the same structure as a .tjsn file. The footer carries session-level metadata:

{
  "video_info": {
    "start_time": "H:mm:ss.SSS",
    "start_date": "M/d/yy",
    "end_time":   "H:mm:ss.SSS",
    "end_date":   "M/d/yy",
    "num_frames": 123,
    "version":    1
  }
}

Saved to <externalFilesDir>/Movies/<MM_dd_yyyy>/vid_<HH_mm_ss>.mtjsn. Playback uses the per-frame metadata timestamps to reconstruct accurate inter-frame timing regardless of the recording frame rate.

`.tltjsn` — time lapse

Identical byte structure to .mtjsn. Each frame is captured on demand via a get_image command at the selected interval rather than from a continuous stream. The footer is the same video_info structure.

<frame1_json> 0x03 <frame2_json> 0x03 … <frameN_json> 0x03 <video_info_json>

Saved to <externalFilesDir>/Movies/<MM_dd_yyyy>/tl_<HH_mm_ss>.tltjsn. Playback ignores the large inter-frame timestamps and renders at a base rate of 8 fps. A tap control next to the skip buttons cycles the playback speed (0.1x–8x).

Exported gallery images (PNG composites) use the MediaStore API and require no storage permission on Android 10+.

`.tchart` — saved temperature history

A single JSON object holding the raw spot/max/min samples behind a saved chart:

{
  "saved_time": "H:mm:ss",
  "unit": "Celsius",
  "samples": [
    { "t": 1753699200000, "spot": 35.1, "max": 37.0, "min": 34.0 },
    ...
  ]
}

t is the sample’s System.currentTimeMillis() timestamp; spot/max/min are in whatever unit was active when the chart was saved (recorded in unit). Saved to <externalFilesDir>/Charts/<MM_dd_yyyy>/chart_<HH_mm_ss>.tchart.

Key classes

Class	Role
`CameraService`	Android `Service` owning the TCP socket. Routes frames to either a `CompletableDeferred` (commands) or an RxJava `PublishSubject` (stream).
`CameraViewModel`	ViewModel consuming the frame stream; exposes `StateFlow` properties for bitmap, histogram, temperatures, FPS, and connection state.
`CameraUtils`	Decodes radiometric/telemetry data, maps through palettes, builds `Bitmap` and histogram. Reads display settings from `SettingsDataManager` per frame.
`ImageDto`	Data model for a single frame. `create(JSONObject, palette)` for live frames; `create(path, palette)` for file playback.
`PaletteFactory`	Provides 10 palettes, each a 256-entry RGB triple array.
`SettingsDataManager`	Jetpack DataStore wrapper. Exposes `Flow<T>` properties for reactive collection and `suspend` one-shot getters.
`discoverTcamCameras` (`utils/DiscoveredCamera.kt`)	mDNS (`_tcam-socket._tcp.`) scan-and-resolve helper shared by the Settings “Find cameras” dialog and auto-reconnect.

Building

The app has two product flavors (see F-Droid below for why):

# Debug APK (full flavor, with crash reporting)
./gradlew assembleFullDebug

# Debug APK (fdroid flavor, no crash reporting / no network telemetry)
./gradlew assembleFdroidDebug

# Full build (debug + release, both flavors)
./gradlew build

# Install to connected device
./gradlew installFullDebug

# Unit tests
./gradlew test

# Instrumented tests (requires connected device)
./gradlew connectedAndroidTest

# Check Kotlin formatting (ktlint via Spotless)
./gradlew spotlessCheck

# Auto-fix Kotlin formatting
./gradlew spotlessApply

Prebuilt APK

Prebuilt/app-full-release.apk is a signed, ready-to-install release build (full flavor). Sideload it directly if you don’t want to build from source; it’s rebuilt and committed whenever a notable change lands.

Dependencies

Library	Purpose
Jetpack Compose + Material 3	UI
Lifecycle ViewModel + Compose	Architecture
Jetpack DataStore Preferences	Persistent settings
RxJava 3 / RxAndroid	Frame stream from `CameraService` to `CameraViewModel`
Timber	Logging
Hilt	Dependency injection (partially wired; `CameraUtils` uses `@Singleton`/`@Inject`)
Sentry Android SDK	`full` flavor only. Crash reporting, sent to GlitchTip (Sentry-protocol-compatible); auto-initializes from flavor-specific `AndroidManifest` meta-data, catches uncaught exceptions and ANRs with no code changes

F-Droid

This app ships two build flavors, declared in app/build.gradle.kts:

full — includes GlitchTip crash reporting. This is what’s distributed via GitHub releases.
fdroid — no crash reporting, no network telemetry, no sentry-android dependency at all (confirmed absent from the compiled .dex, not just disabled at runtime). This is the flavor F-Droid builds, so the F-Droid listing carries no Anti-Features: Tracking disclosure.

Build metadata for F-Droid’s automated build process lives in .fdroid.yml at the repo root, and store listing text/screenshots live under fastlane/metadata/android/en-US/, following F-Droid’s standard layout.

License

GPLv3 — see LICENSE. Matches the license of the upstream tCam firmware project this app connects to.
